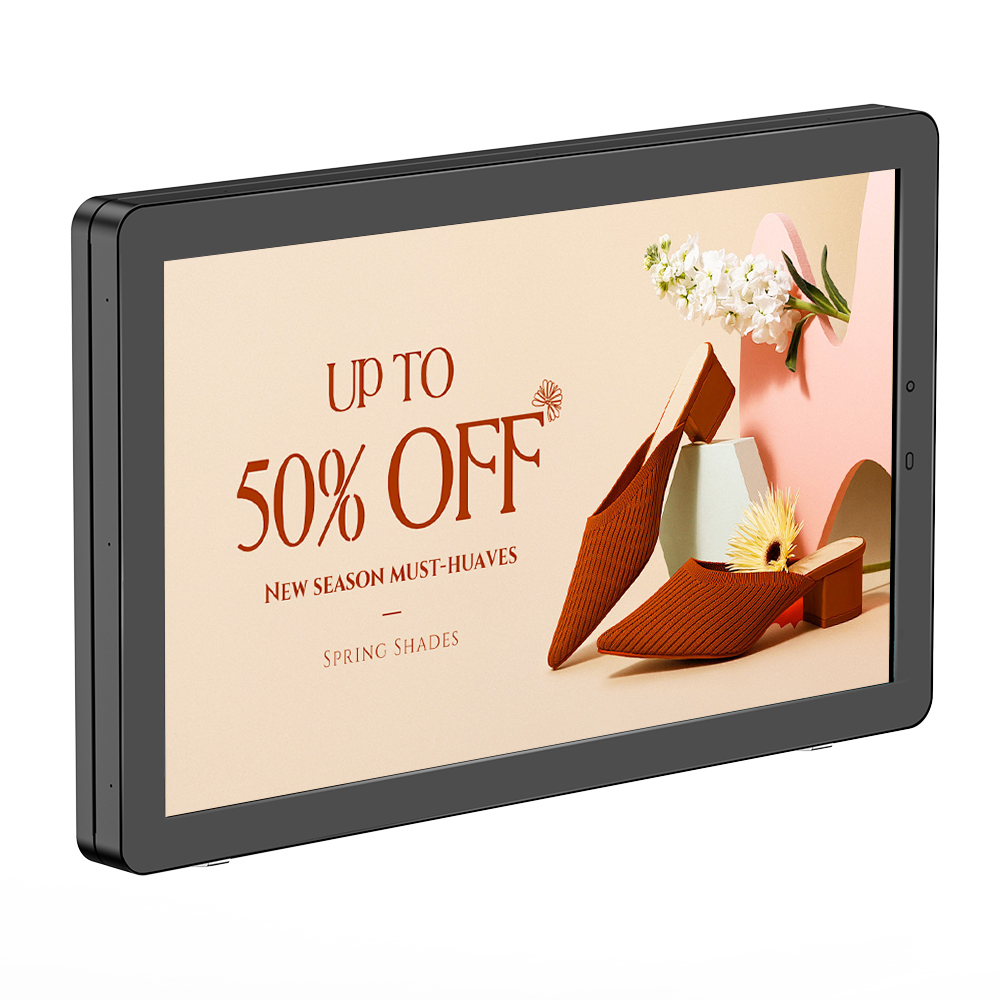

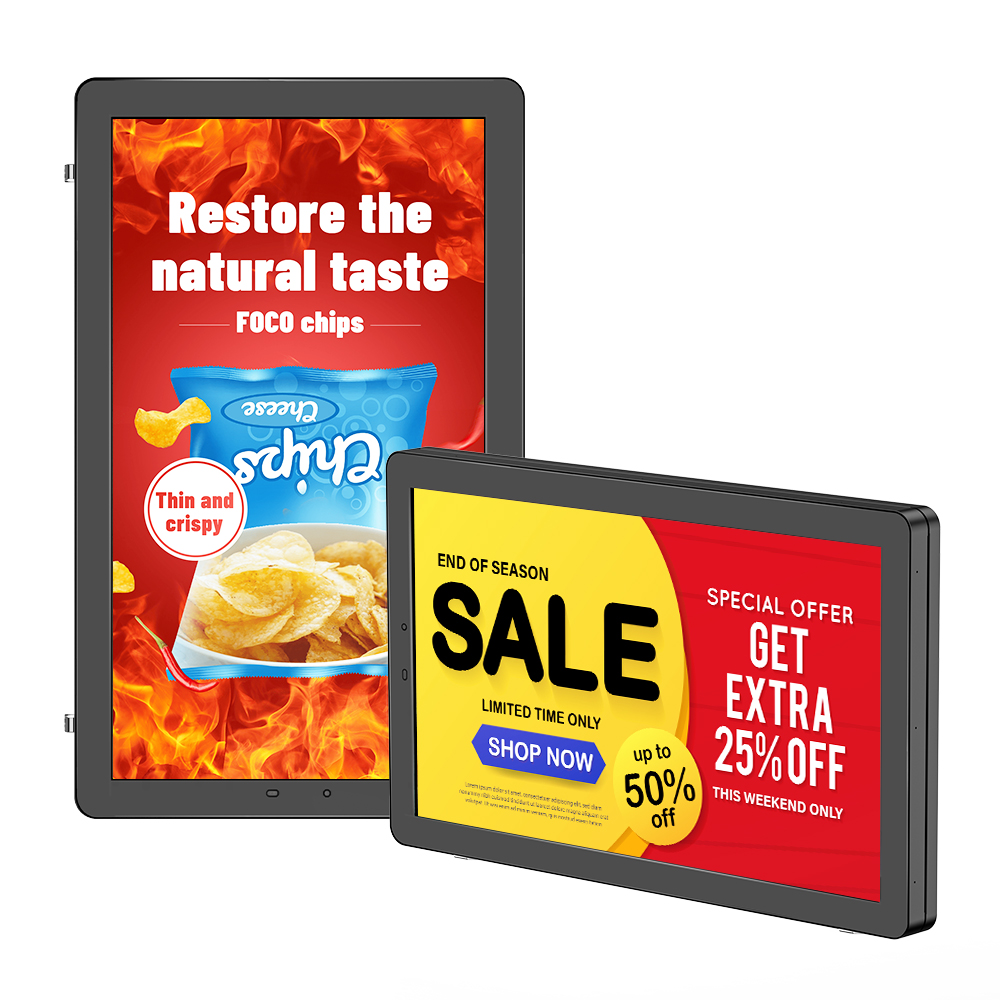

Wall-mounted Outdoor Digital Signage

【HD Clear Display】2K/4K resolution, 1500:1 contrast ratio, and 178° wide viewing angle. Presents sharp and vivid images for outdoor advertising.

【1500~2500nits High Brightness】

Auto - sensing adjusts brightness according to outdoor light. Ensures visibility under strong sunlight while being energy - saving without excessive power consumption.

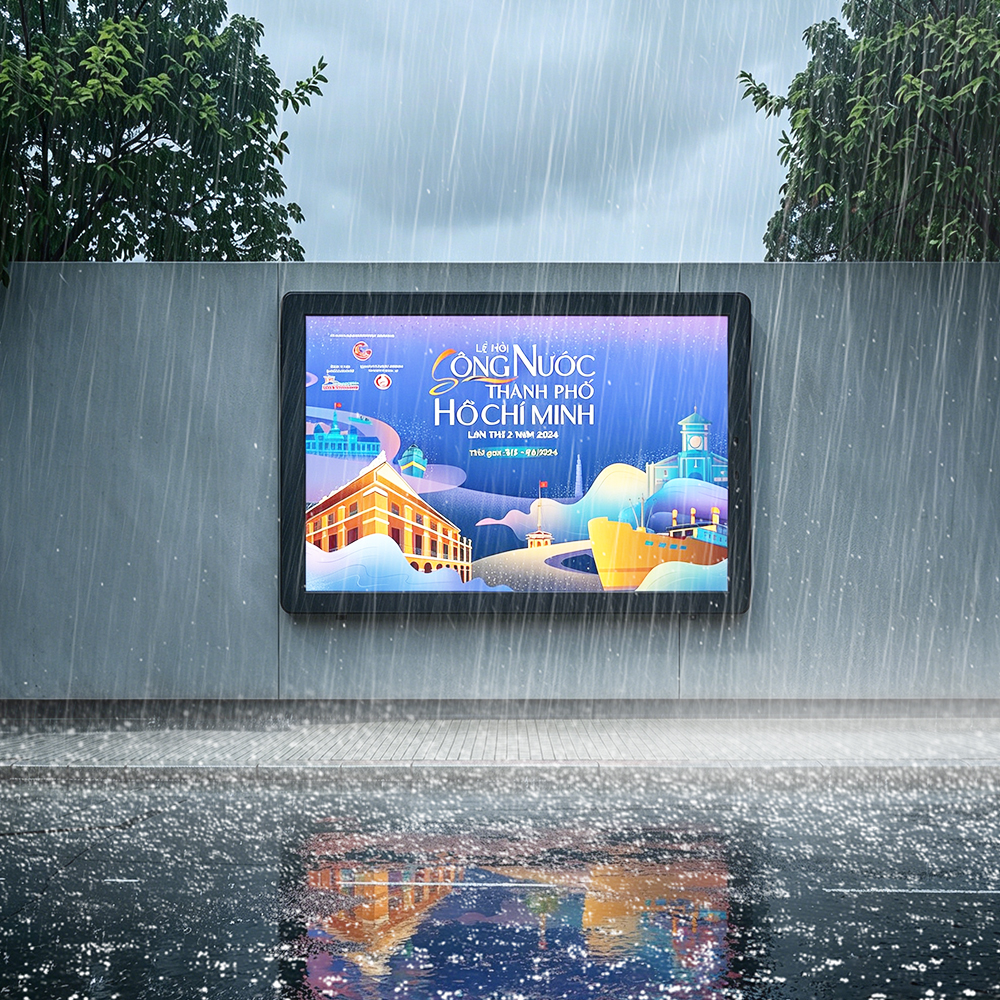

【IP65 Full Protection】

Waterproof (with 3 - layer seals), dustproof (equipped with a 3M filter), lightning - proof, leakage - proof, and explosion - proof (featuring 6mm tempered glass). Capable of withstanding harsh outdoor conditions.

Durable Black Casing：Made of 1.5mm galvanized steel with outdoor powder coating. The black color provides anti - rust and anti - corrosion properties, maintaining a sleek appearance over the long term.

【Intelligent Temperature Control】

Industrial - grade silent fans with auto - speed adjustment based on internal temperature. Keeps the device cool and stable for 24/7 outdoor operation.

• Intelligent Temperature-Controlled Air Cooling System

• Overheat Protection Supported

• Speed Control for Noise Reduction (Energy-saving)

Operating Temperature: -10°C to 50°C (A heater is recommended if the ambient temperature is below -10°C)

Operating Humidity: 5% - 90% RH

Storage Temperature: -20°C to 60°C

Storage Humidity: 10% - 85% RH

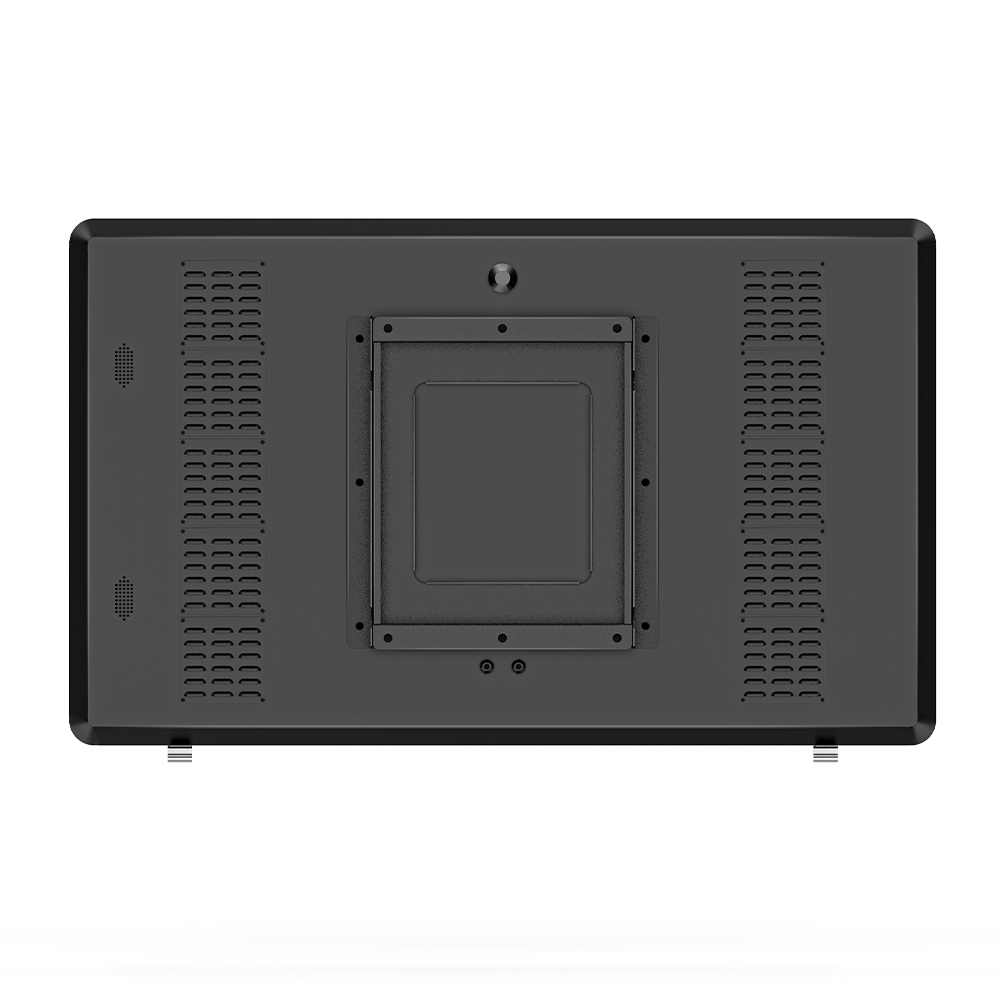

【Easy Wall Mount Installation】

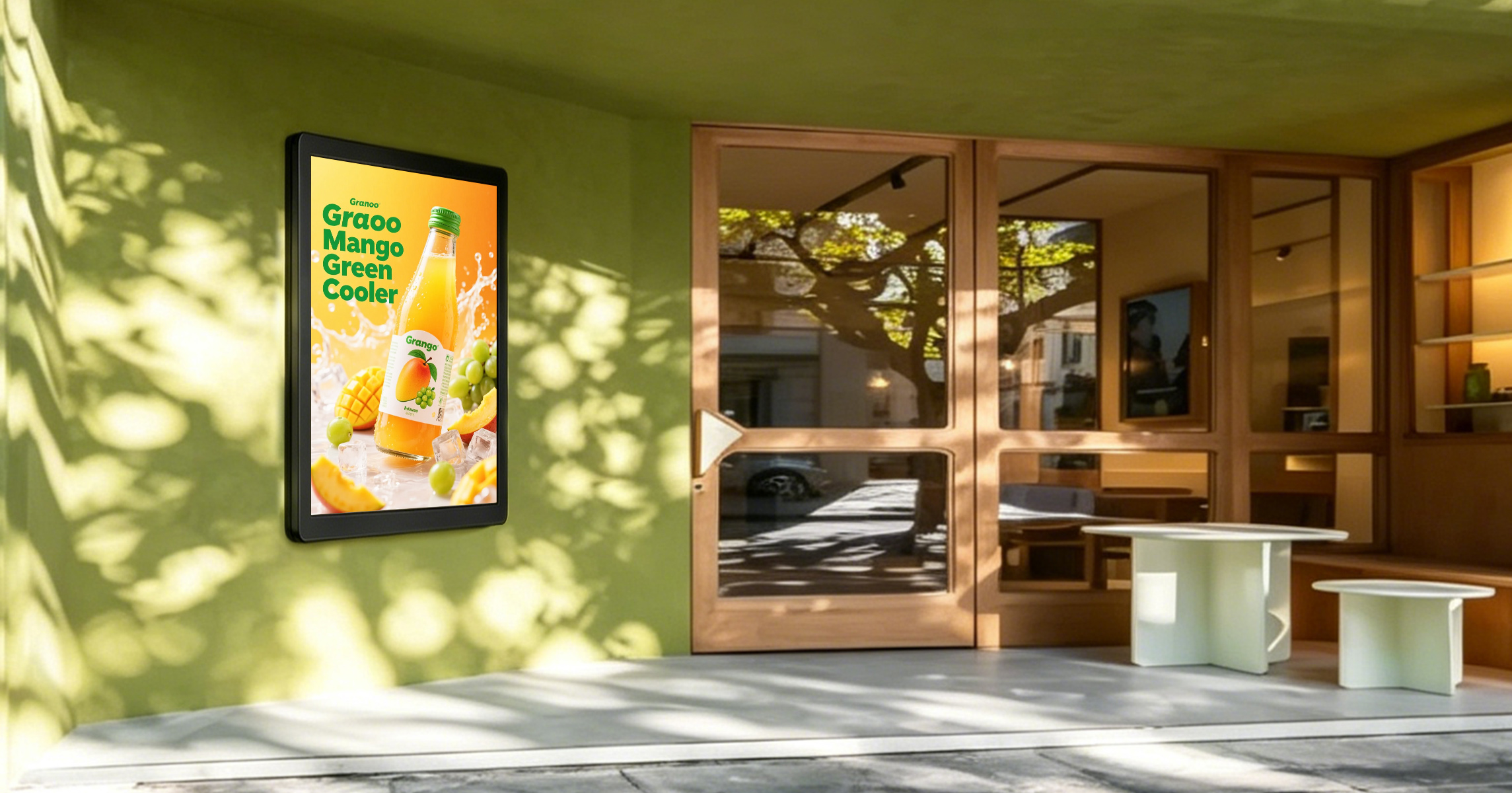

Designed for wall - mount installation. Simple to set up with included screws. Saves space for storefronts, streets, and other scenarios.

【Long Lifespan】

TFT - LED panel with a 50,000 - hour lifespan. 6mm tempered glass protects the screen from impacts, extending the service life of the device.

【24/7 Continuous Operation】

Built - in time control and backup battery. Operates non - stop and can be set to auto - on/off as preset. Suitable for 24 - hour business needs.

【Rich Audio - Visual Output】Dual 8Ω10W speakers and HDMI/USB interfaces. Plays videos and audio clearly and enables easy connection to external devices.

【Technical Support】

Professional support, responds within 12 hours. Engineers assist with product needs.

【Motherboard configuration/interface】

CPU: RK-3288 Cortex-A17, 4-core, 1.8GHz (optional)

Operating system: Android 7.1 (optional)

Running memory: 2GB(optional)

Storage: 32G (optional)

Storage Expansion: Supports up to 32GB SD card expansion (optional)

Network: LAN/WiFi/4G module (optional)

Bluetooth: optional

Interface: USB2.0 * 2     HDMI Out * 1

HDMI In (optional)       MicroPhone * 1

Audio output * 1         SD card * 1

Horn: 8 Ω 10W * 2

【Touch (optional)】

Touch type: G+G capacitive waterproof touch

                  G+F nano waterproof touch

Point count: 10 points

Touch accuracy: 99% accuracy

Operating system: Windows/Android/Linux

Working temperature: -30 ℃ -60 ℃
