Double Sided High Brightness Window-Facing Digital Signage for Retail Storefront

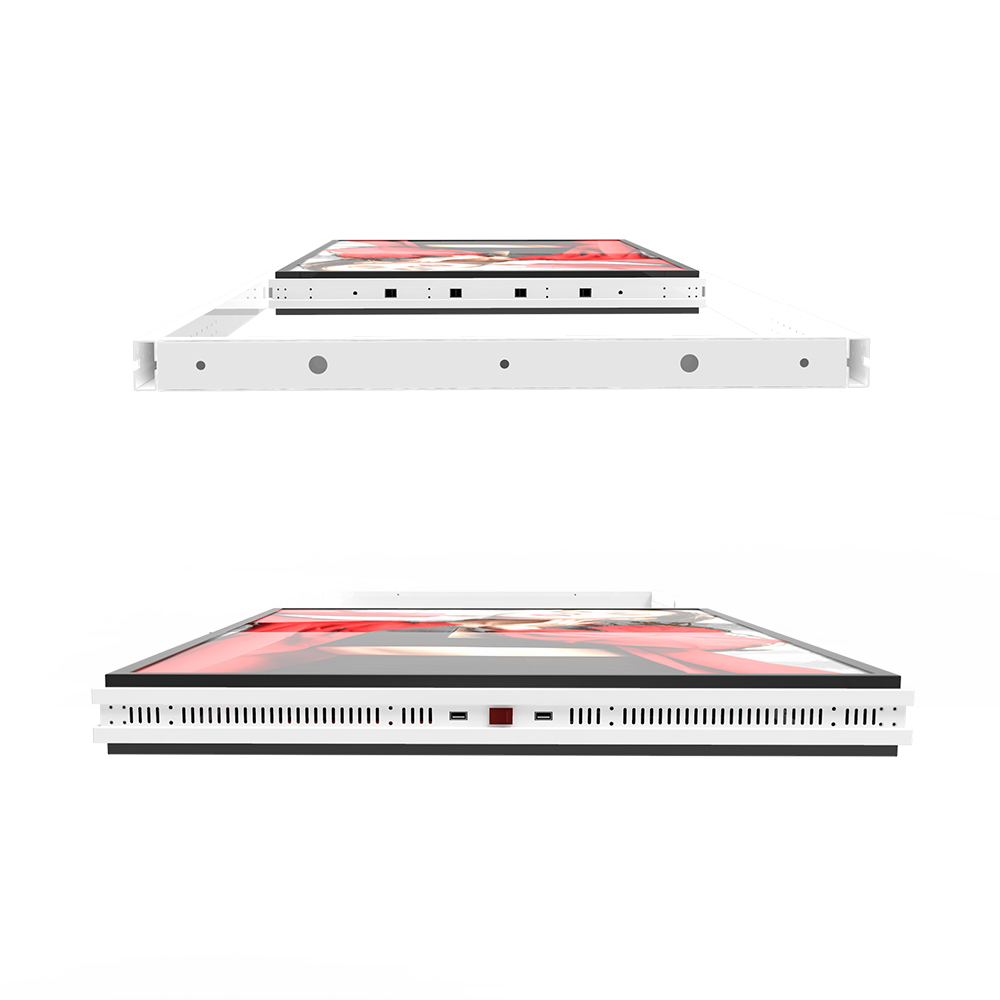

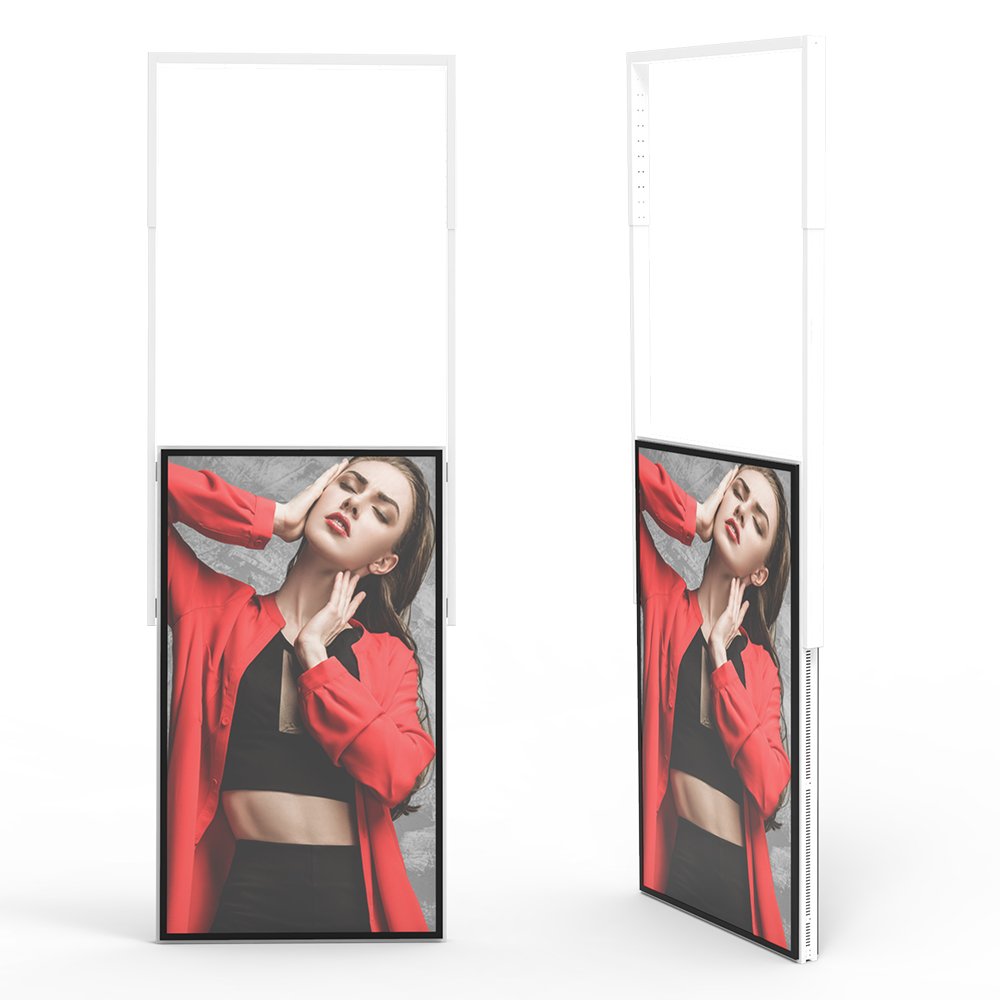

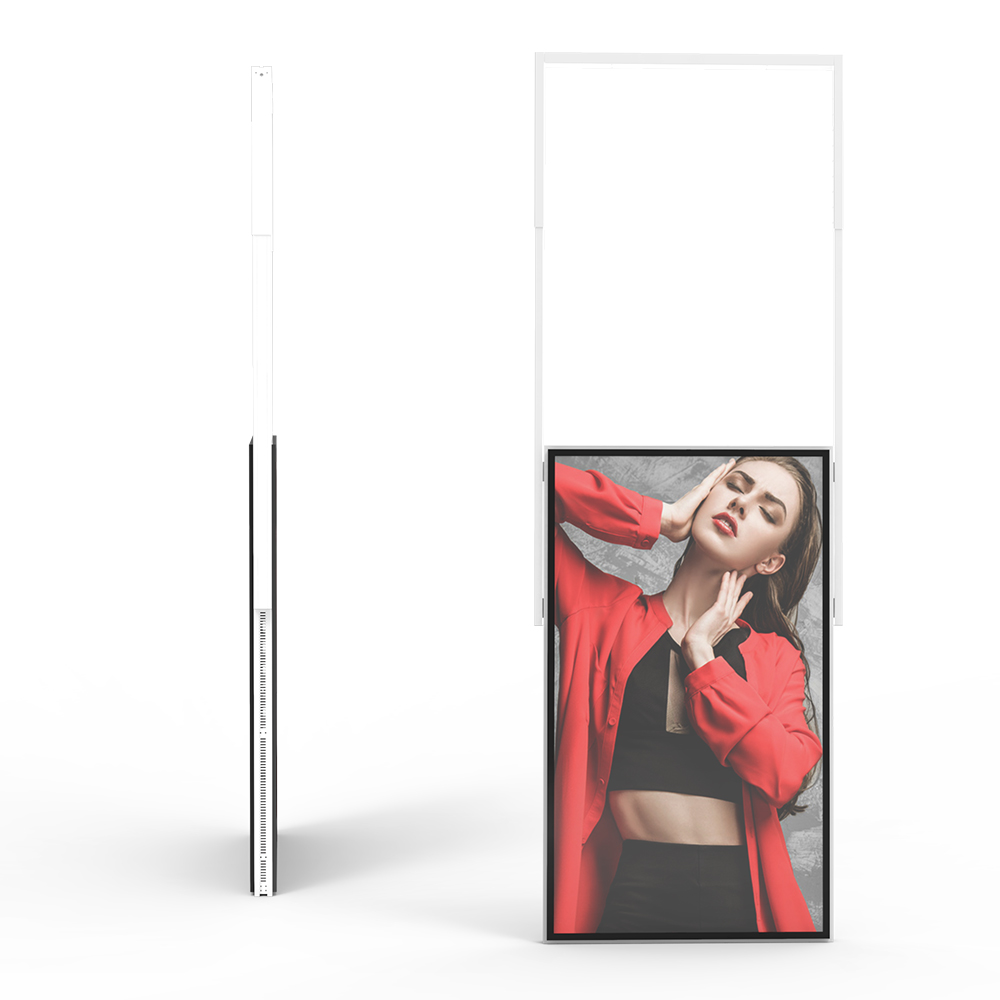

GoXmart double-sided high-brightness window-facing digital signage features dual independent display sides: one panel faces store window for outdoor passers-by, the other screens content toward indoor shoppers. Available brightness from 1000~3000nits , ultra-slim sheet metal cabinet with narrow bezel, plus CMS remote management for unified content update. This practical storefront window display is widely favored by fashion boutiques and retail brands.

Max Resolution: 3840×2160(4K UHD)

Brightness: 700cd/㎡ standard; Optional high brightness 1000~2500cd/㎡

Contrast Ratio: 3000 : 1

Viewing Angle: U/D/L/R:89°/89°/89°/89°

Response Time: 6ms

Mainboard & Interfaces (Optional)

• CPU: RK3288, Quad-core 1.8GHz CPU + Quad-core Mali-T764 GPU

• Memory & Storage: DDR3 2GB RAM + 16GB Flash ROM (Expandable)

• nterface List

  2× External USB, 4× Built-in USB, 1× SD Card Slot, 1× RJ45 LAN Port, 1× LVDS, 1× HDMI2.0 (4K@60Hz output, customized)

• Wireless: Built-in WiFi & Bluetooth; Optional 3G/4G module

Software & Functional Features

System Basic

OS: Stand-alone / Android / Windows

Multi-language Menu: CN, EN, RU, DE, FR, ES and other global languages

1. Video: RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV

2. Audio: MPEG-1 Layer I/II/III, AAC-LC 5.1/HE-AAC, BSAC2.0, WAV, 24-bit linear PCM7.1

3. Image: BMP/JPEG/PNG/GIF

4. Document: PDF, PPT, SWF, Text & Real-time Data Stream

Screen Layout Split

Supports split layout: video zone, graphic zone, scrolling ticker, LOGO area, date/time/week/weather widget, real-time picture & real-time video region

System Management Mode

• Upgrade: Update firmware via SD Card

• Local Management: Centralized management, group control, multi-user access authorization, auto power on/off by schedule

• Remote Control: Remote power switch, remote content update, remote real-time status monitoring

• Playback Mode: Loop play, scheduled play, insert play available

• Architecture: B/S(Browser/Server) cloud management framework

• Network: LAN, WAN, WiFi, Optional 3G

• Audio Output: Built-in dual mini speakers
