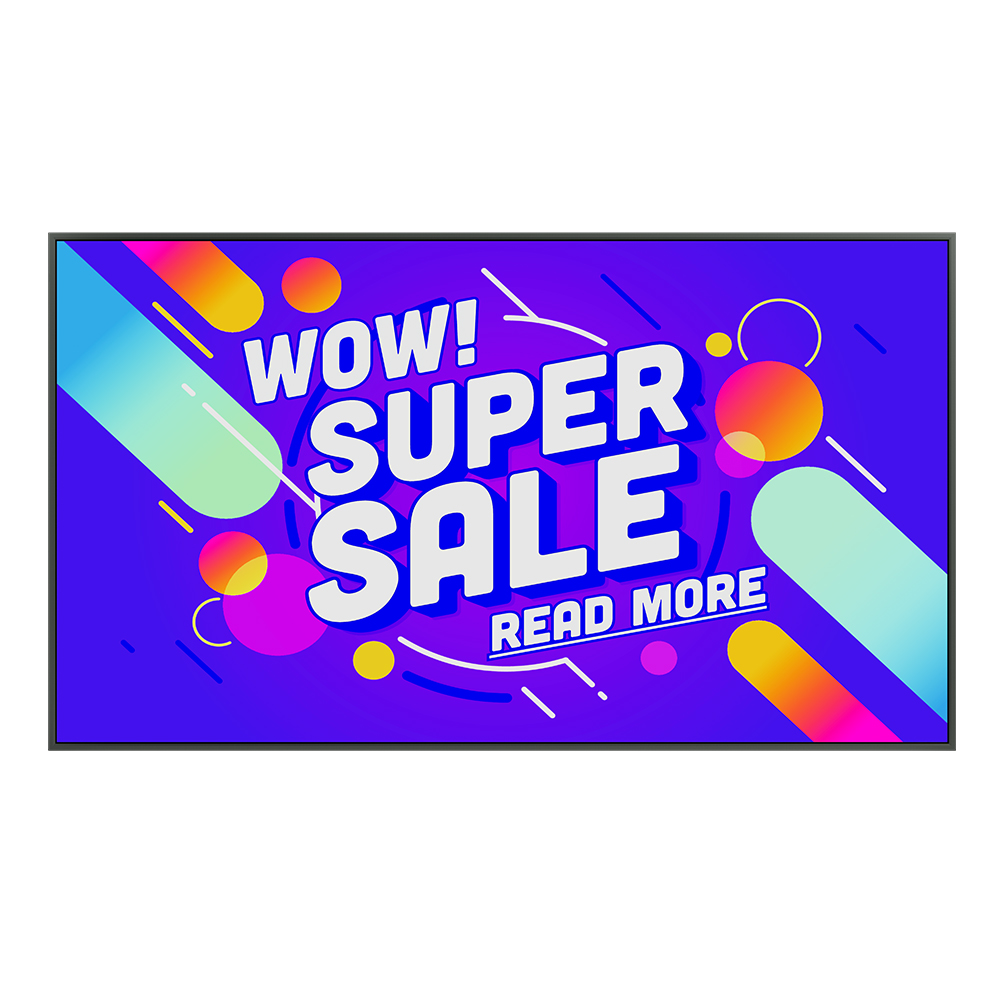

43 Inch High Brightness Display - High Resolution Display Screen
I. Appearance Design
Independently designed with an ultra-narrow bezel and a four-sided symmetrical front panel for a more balanced visual experience.

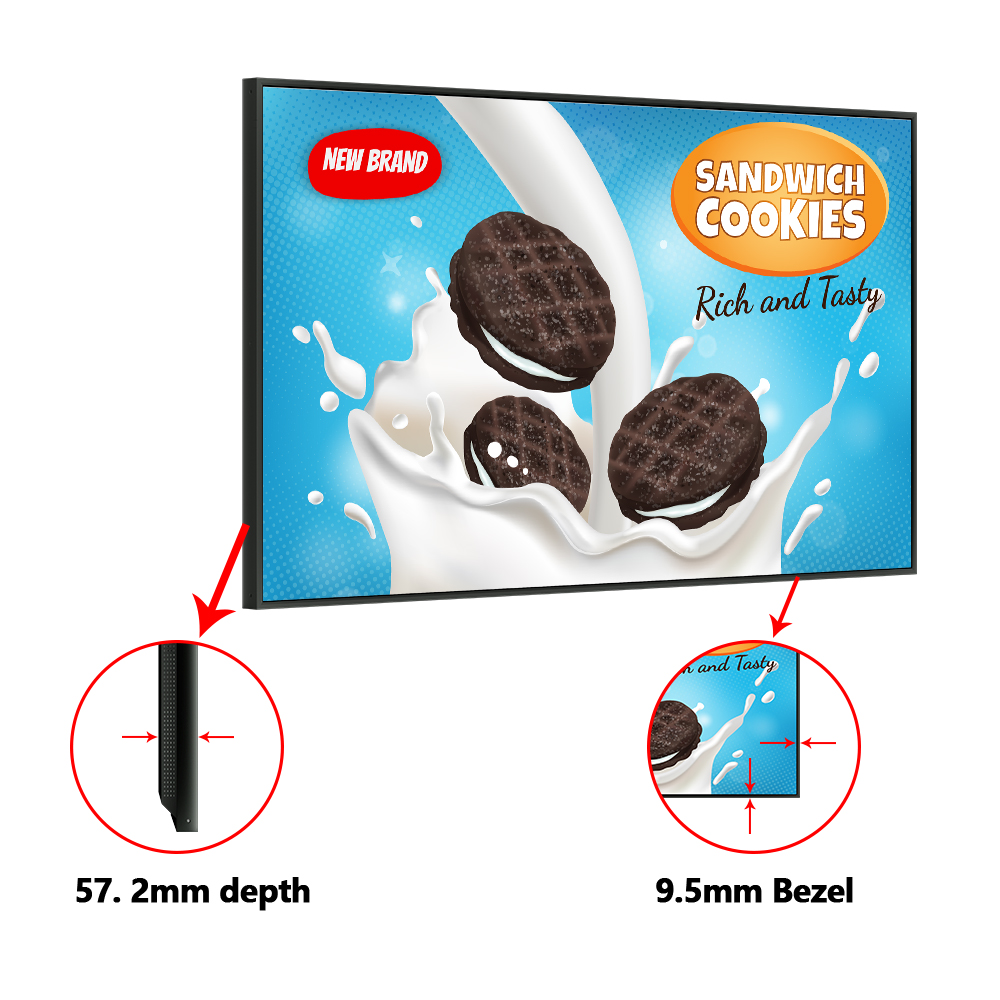

Stylish 9.5mm narrow bezel design delivers a seamless splicing effect similar to professional video walls, achieving a 97% screen-to-body ratio, with a full metal frame.

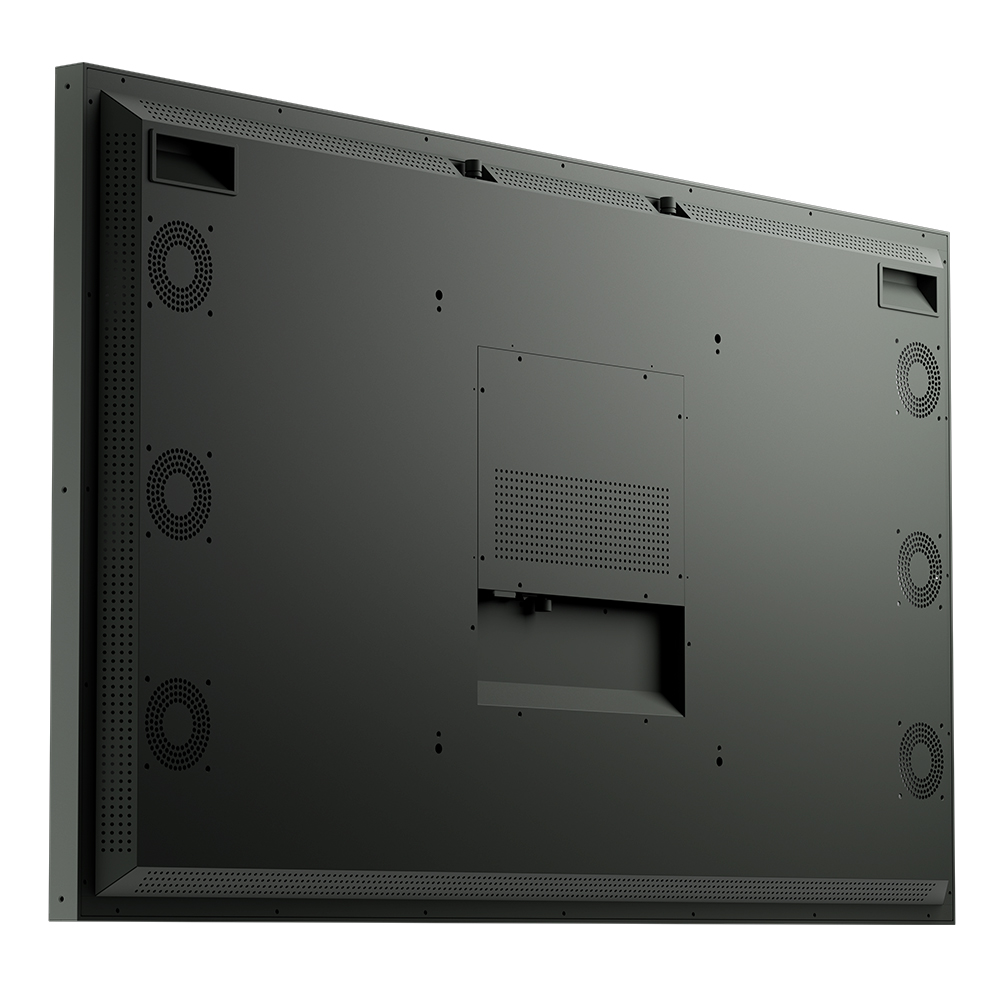

Ultra-slim body of only 57.2mm thickness, breaking the stereotype that high-brightness displays must be bulky. Featuring integrated modern industrial design with a flat rear cover for a sleek, premium look.
Most competing products on the market exceed 80mm in thickness with 15mm bezels, resulting in larger packaging dimensions, increased weight, higher shipping costs, and ultimately higher total procurement costs for end users.
2. Craftsmanship & Materials
Exquisite craftsmanship with innovative design.The display features an ultra-slim aluminum profile frame and cold-rolled steel with baking paint, finished with high-end high-gloss white powder coating. This delivers exceptional texture, a glossy finish, excellent scratch resistance, and long-lasting durability without paint peeling.

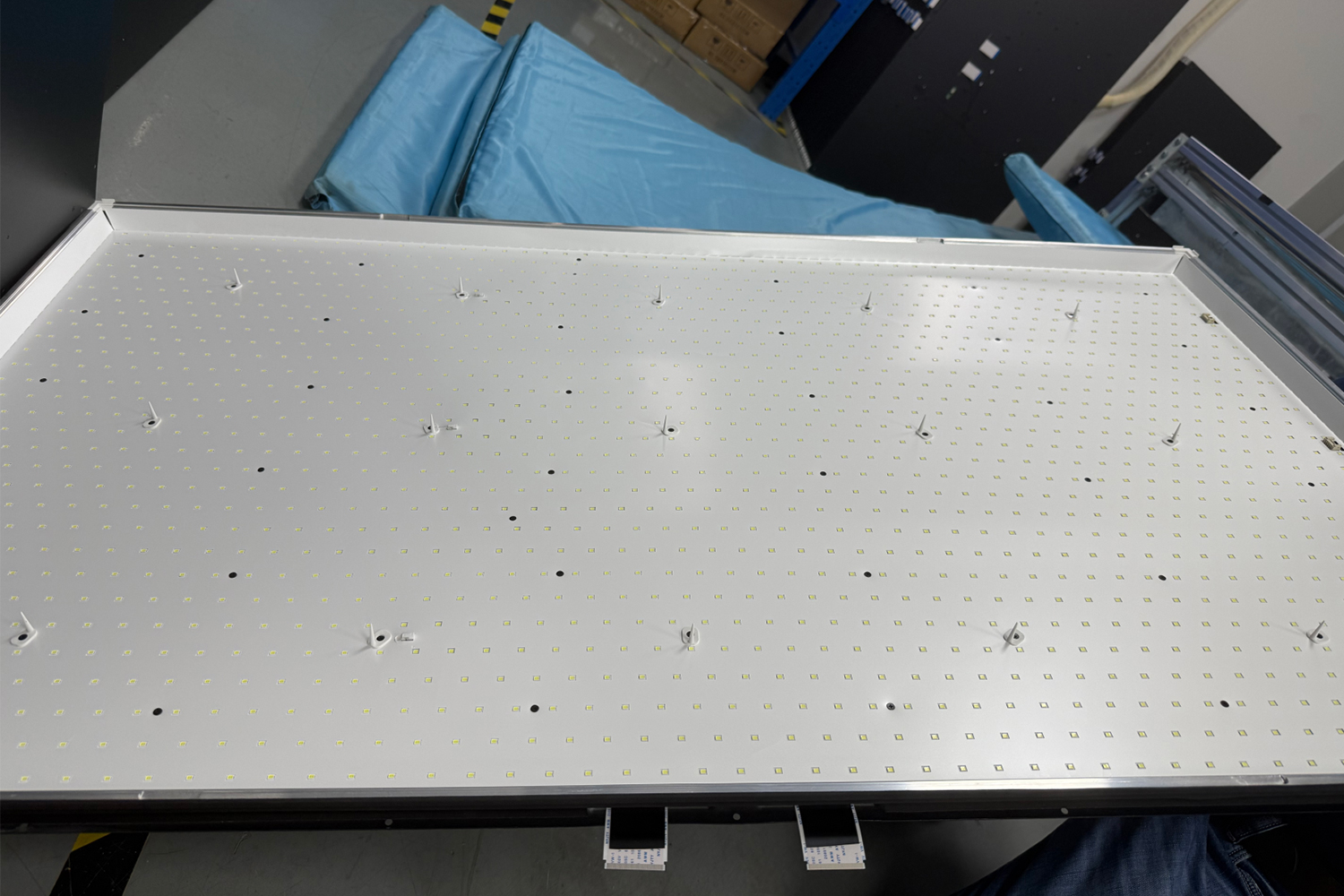

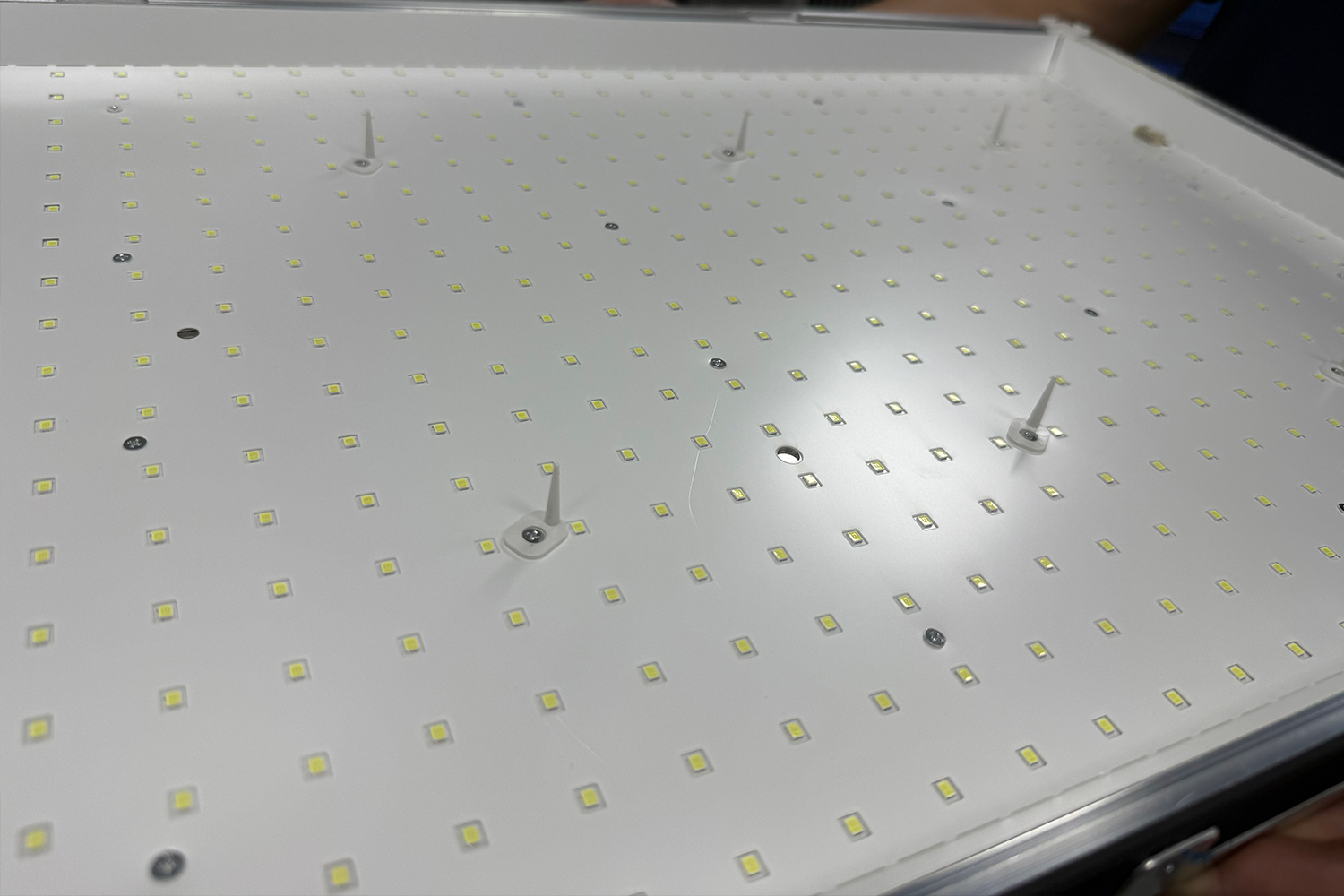

Equipped with a 1.5mm aluminum back panel for efficient backlight heat dissipation.

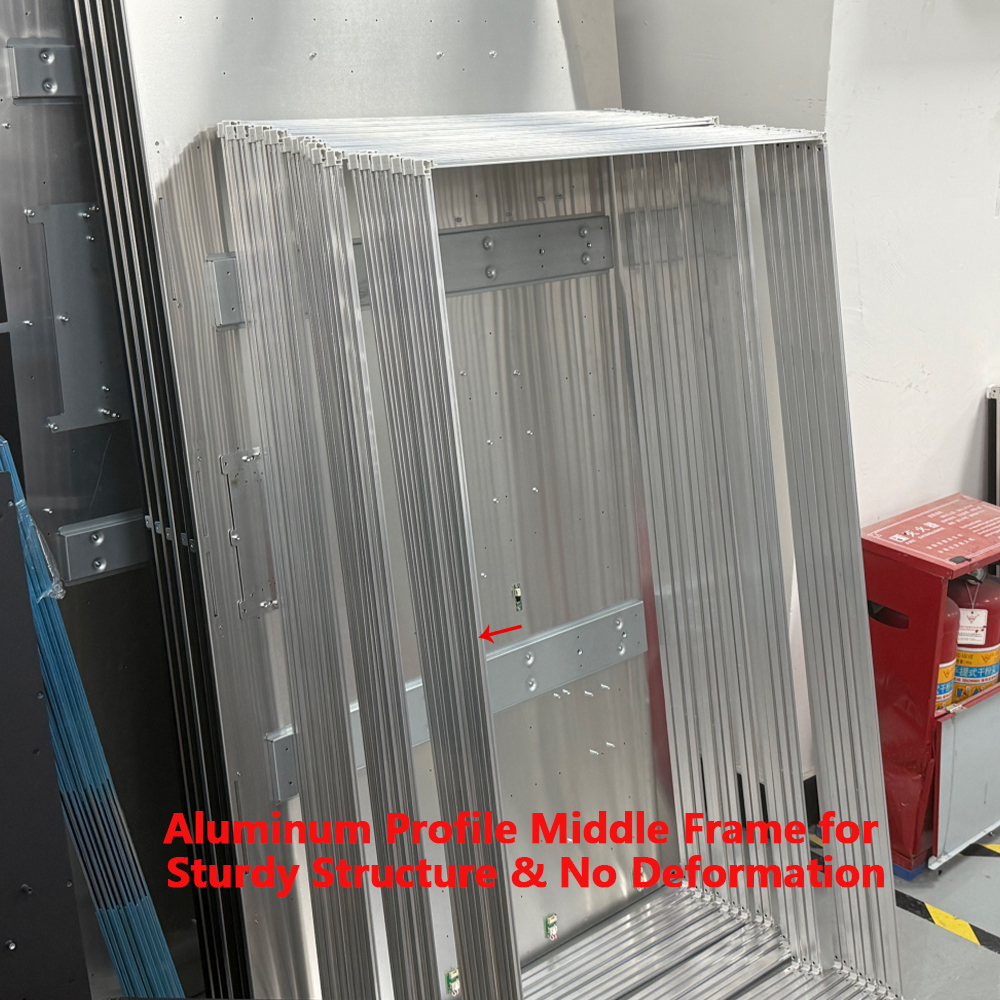

Unique middle frame design ensures the LCD glass remains perfectly flat at all times, effectively eliminating issues such as LCD misalignment, ribbon damage, and black screen failures.
Fully mold-designed structure provides outstanding heat dissipation and operational stability. With over 80% aluminum content, the overall unit weight is reduced by up to 30%.
3. Size and Installation

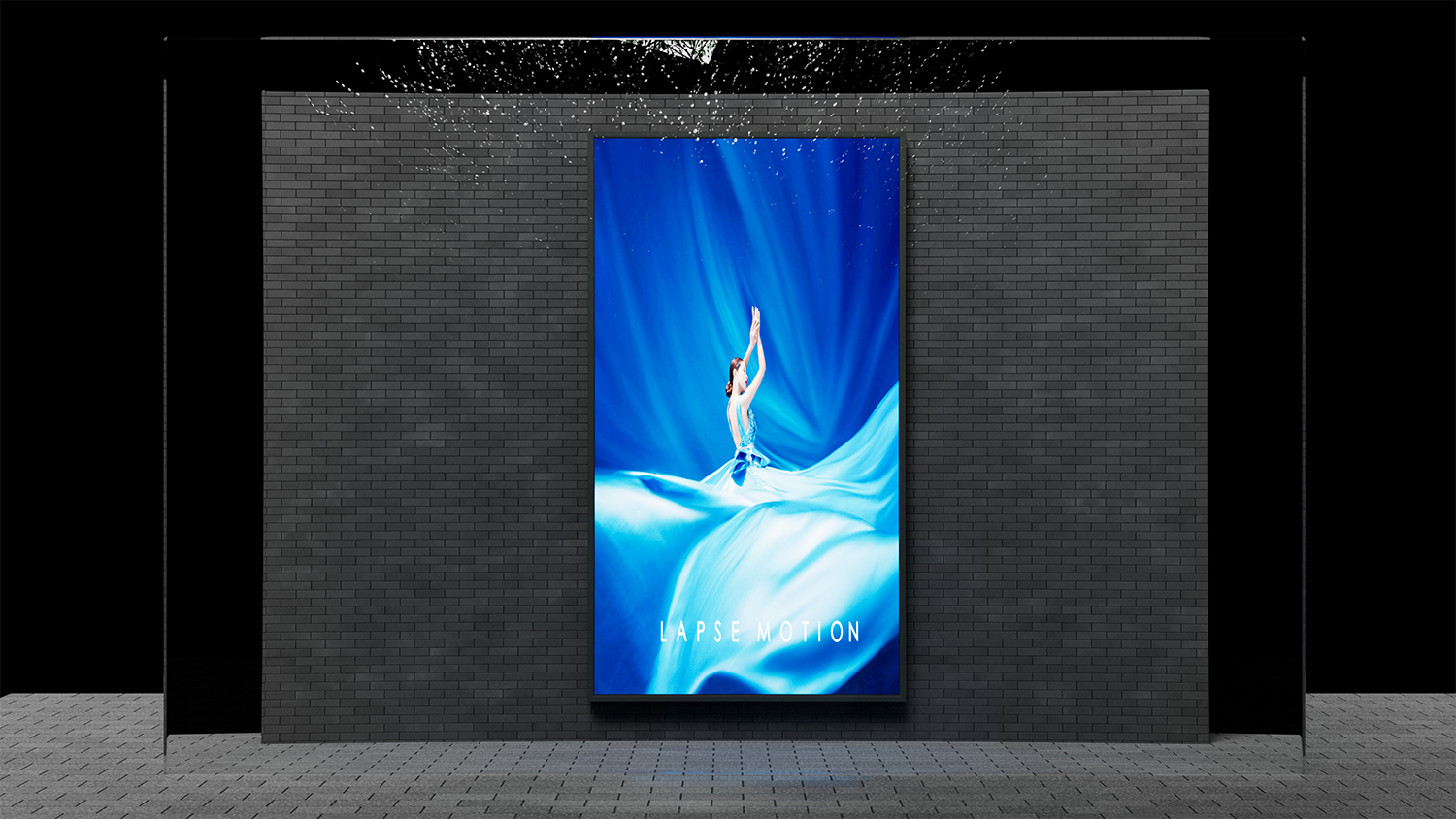

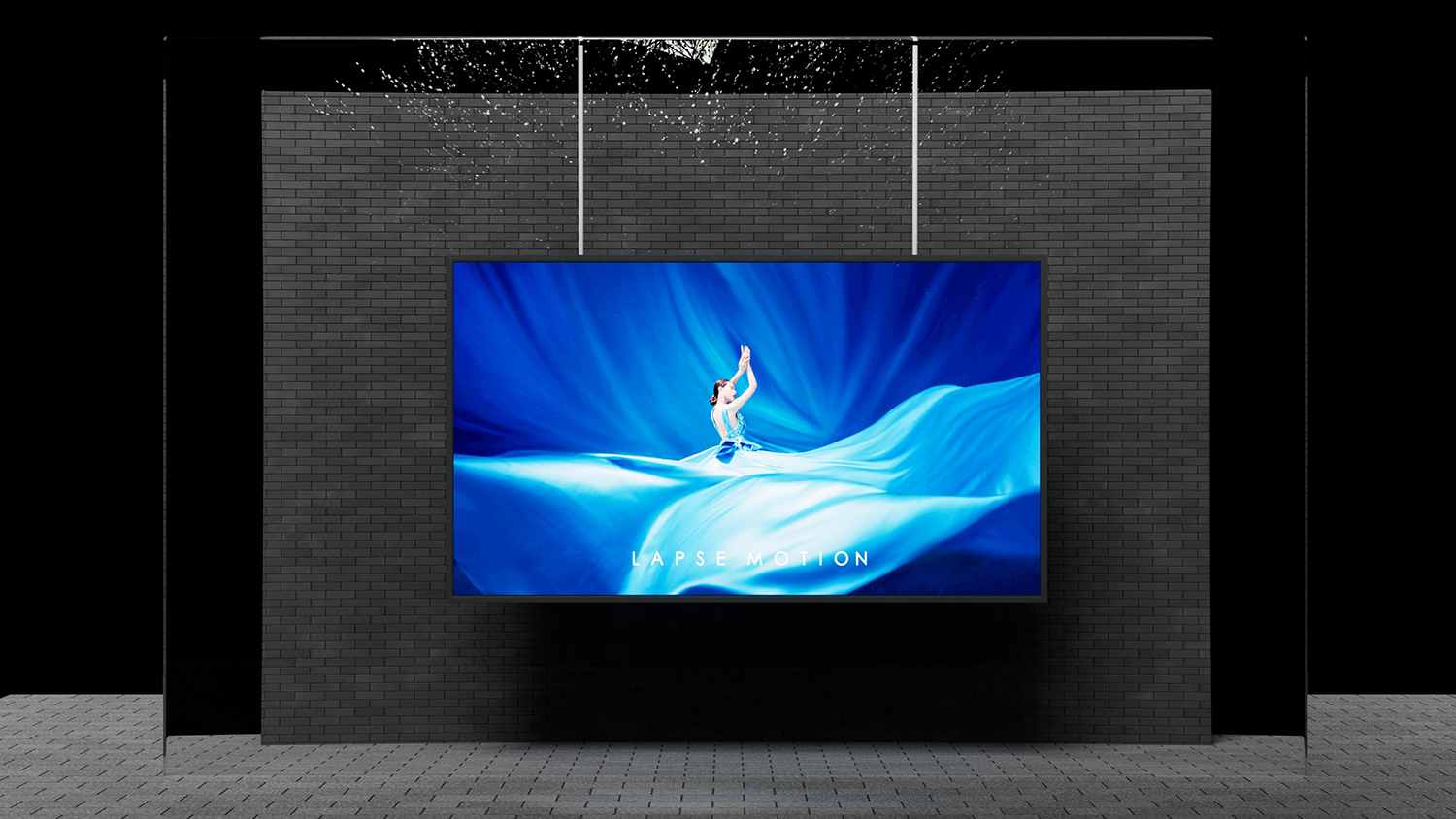

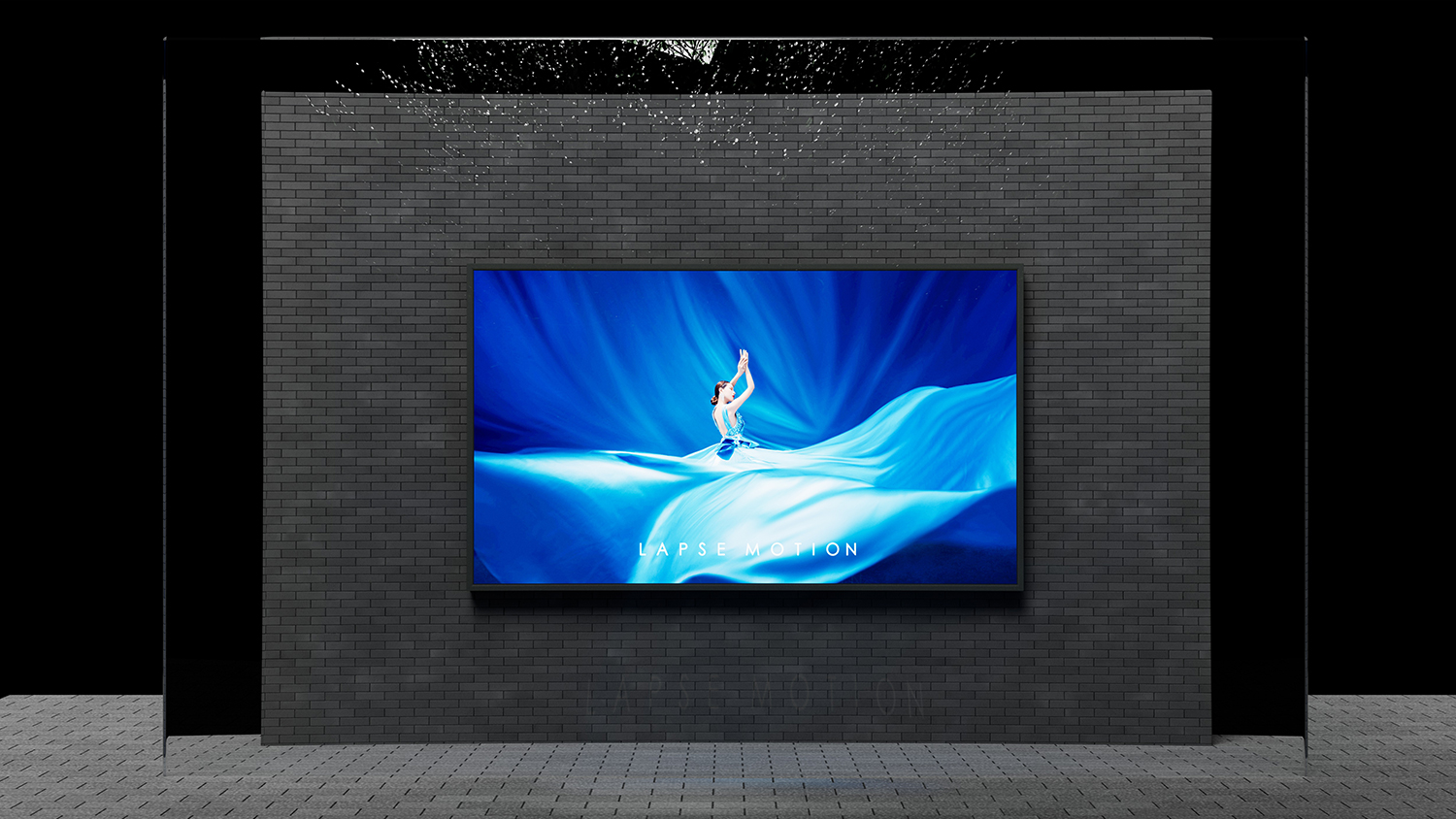

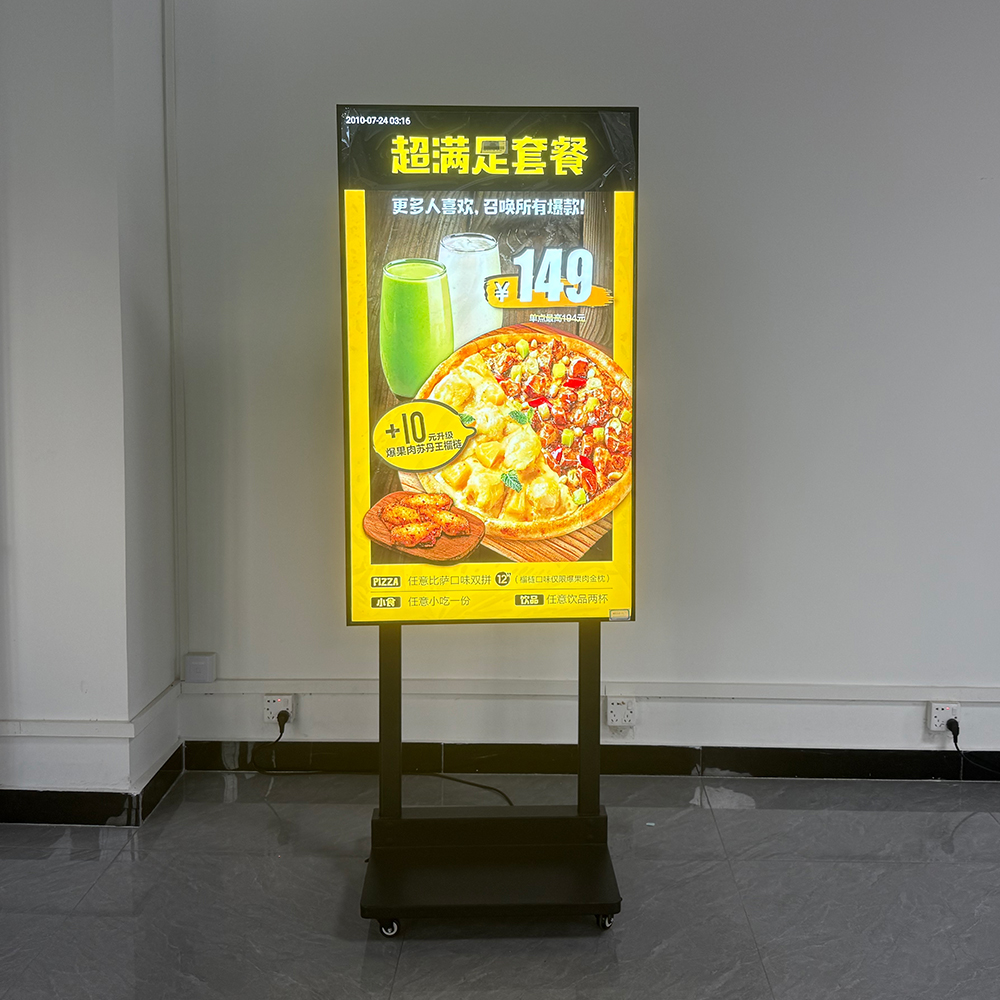

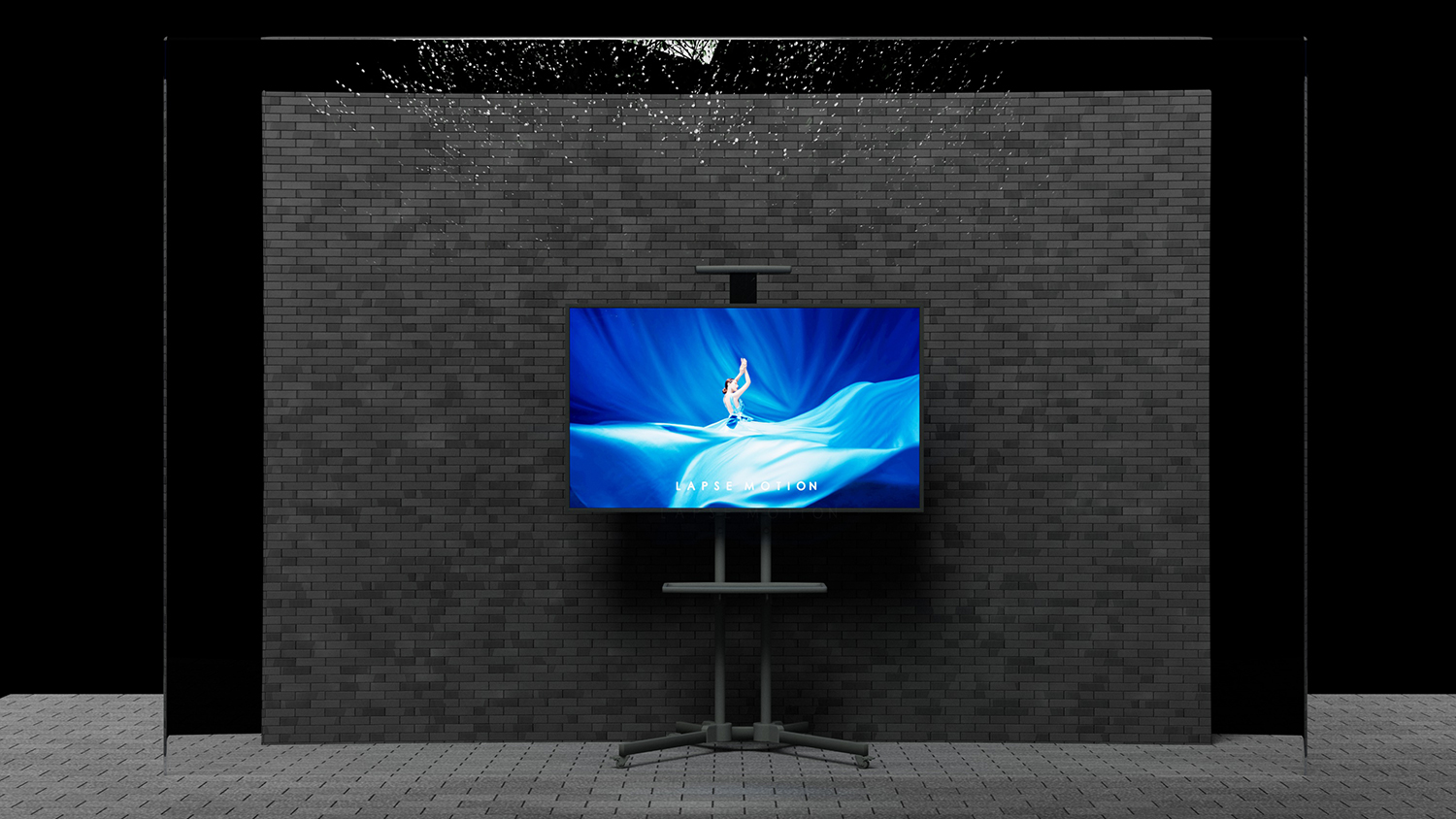

Standard mounting holes for easy installation and high compatibility. The window advertising display supports ceiling mounting, floor standing and wall mounting. You can choose the installation method according to the on-site conditions, completely unlocking new forms of window display. It performs well in major shopping malls and shows a variety of shapes.
3. Product Features and Effects
Ultra High Brightness: Brightness up to 1000-4000 nits, more than 10 times brighter than conventional displays of the same type. Perfect for window display applications in street-front stores. Even in strong outdoor light, the screen presents smooth, delicate and clearly visible images with vivid and bright animations. It captures customers' attention at the first glance, makes customers stay longer in front of the window, and increases the store's attention rate and entry rate.
High Heat Dissipation & Stable Performance
Combining cooling vents and a cooling fan with up to 430 heat dissipation holes, it greatly increases heat dissipation area and efficiency, ensuring more stable performance and longer service life.
Self-Developed IR Receiver Module
Our unique remote control design is integrated with the backlight solution, supporting free operation from 7–8 meters in front of the screen without aiming at a specific position, greatly improving user experience.
Self-Developed Central Control Motherboard
The fan activates only when the temperature reaches 40°C for quiet, noise-free operation. When the temperature hits 65°C, the power board output is automatically reduced to 70% to control backlight temperature. Once the temperature drops, the power board resumes full power supply to avoid black screens and enhance overall stability.

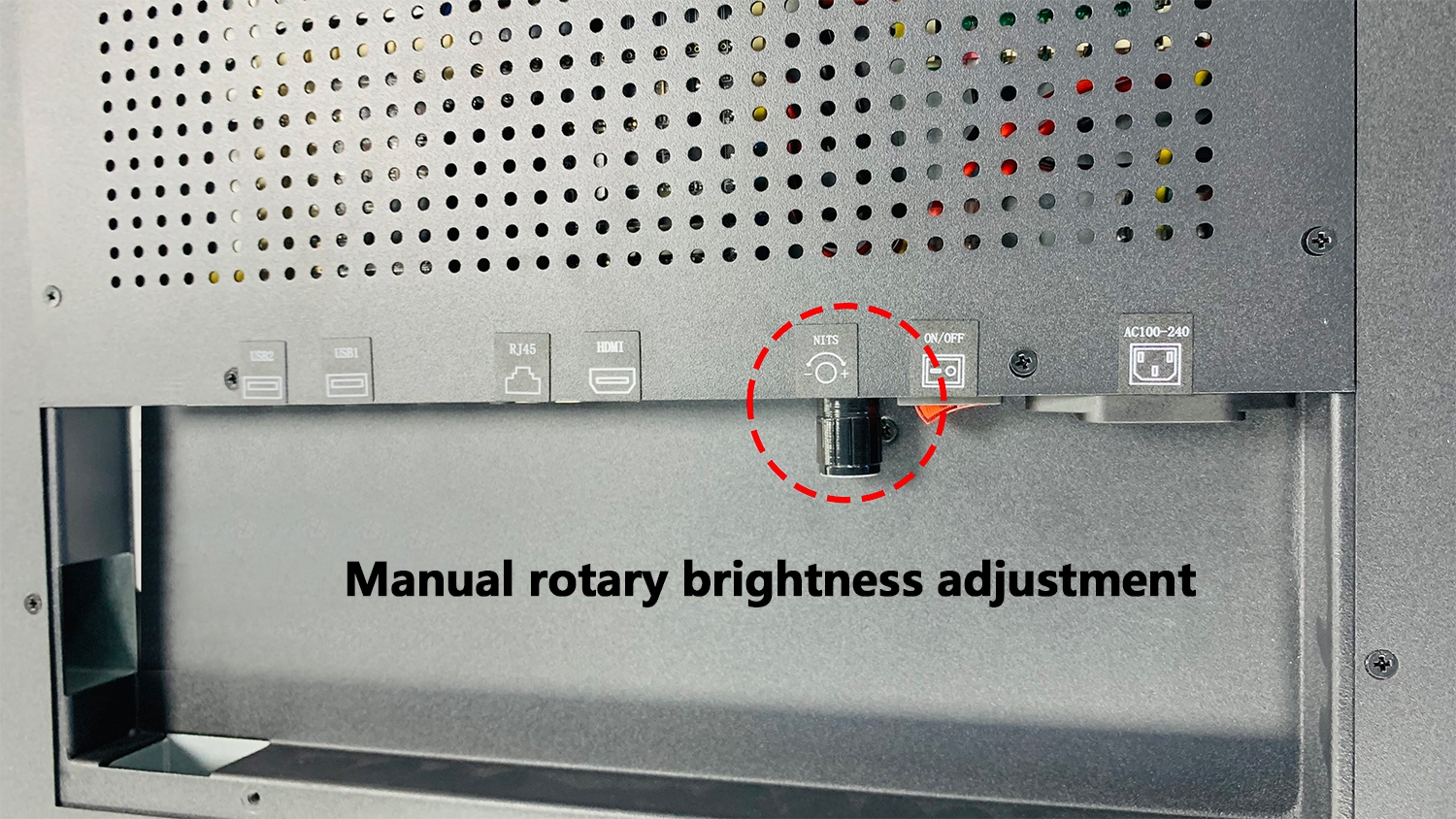

Auto Light Sensing & Manual Dimming Combined
Featuring intelligent light-sensing technology driven by smart algorithms, the screen automatically adjusts brightness linearly according to ambient lighting conditions. This effectively relieves eye fatigue caused by insufficient light and delivers the most comfortable viewing experience. A gentle 5-second transition is applied during brightness increases or decreases. Meanwhile, users can manually set the minimum brightness level, achieving energy conservation, environmental protection, and prolonged service life.
Compatible with Mainstream Motherboards & Systems
It is compatible with various mainstream motherboard models on the market and supports operating systems including Windows, Android, and Linux.
Flexible Usage & Creative Display Solutions
Unlimited customer usage scenarios, suitable for a wide range of advertising display windows. Supports mainstream signal input and can play videos and images smoothly.
Supports large‑angle right‑angle or rotated installation. When paired with an intelligent control system, it can create highly creative window advertising displays.

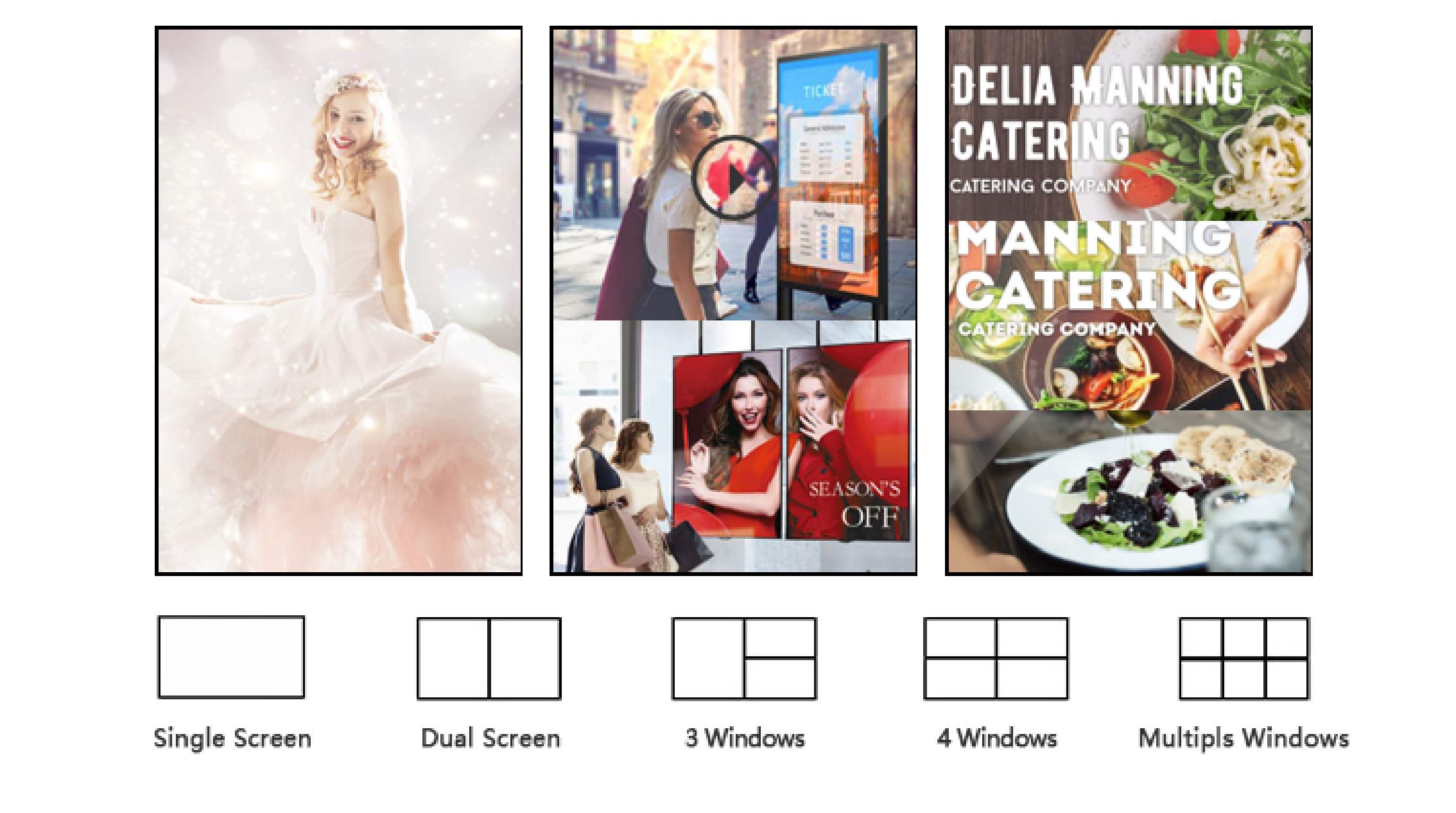

High-definition Image Quality Split-screen Display Timer Power On/Off USB Media Playback

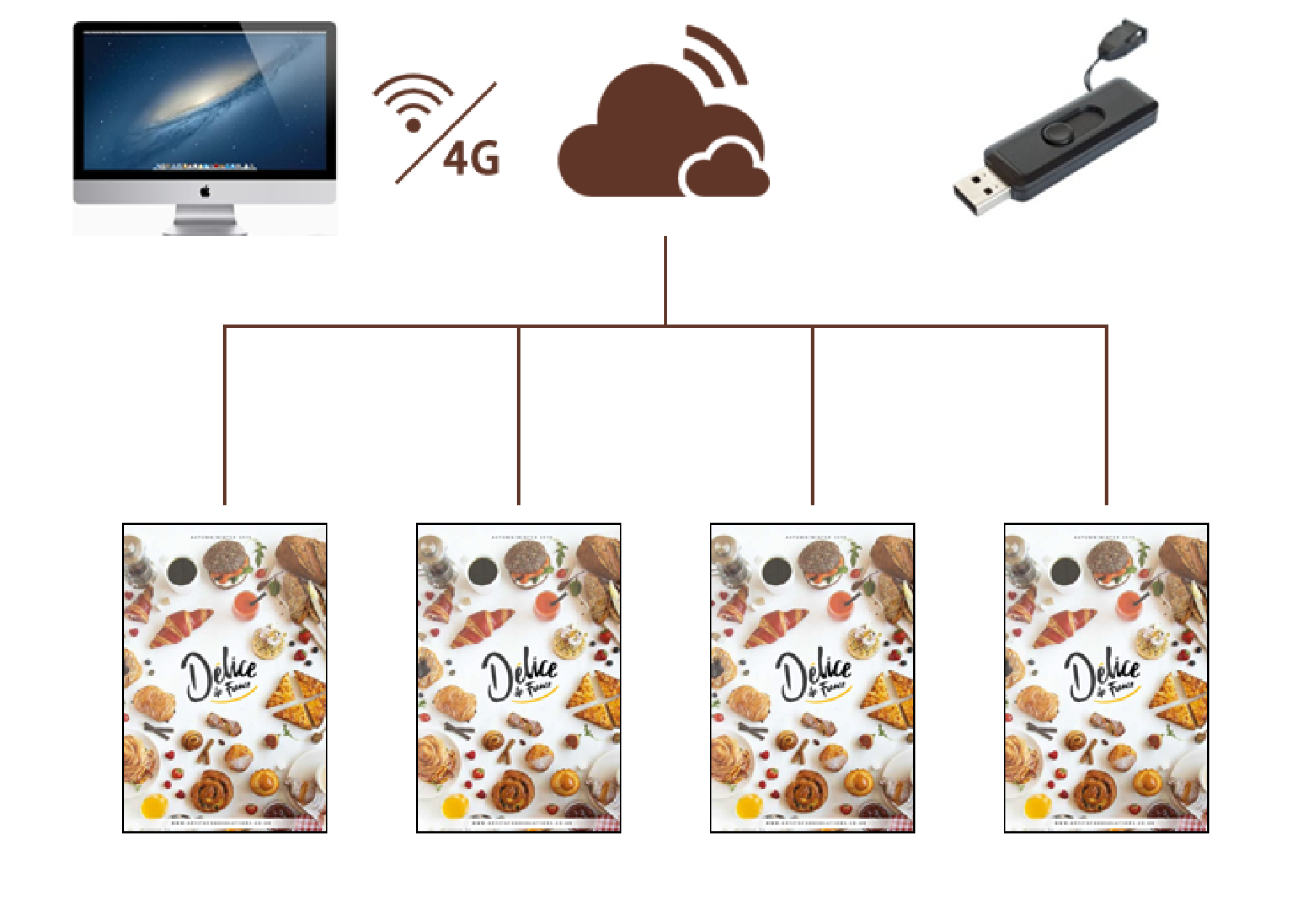

Mobile Phone Control WiFi Connec Loop Playback Remote Content Publishingtivity
| 43 Inch High Brightness Display | |
| LCD | 43'' IPS |
| Display area | 945mm x533mm |
| Display ratio | 16:9 |
| Resolution | 1920*1080 |
| Brightness | 1000-4000 cd/m² （Automatic Linear Light Sensitivity） |
| View Angle | (U/D/L/R):89°/89°/89°/89° |
| Working life | 50000h |
| Working time support | 7*24Hrs |
| Display mode | Horizontal and vertical |
| Speaker | 2*10W，8Ω |
| Spec | RK3568 |
| Interface | HDMI, USB (optional) |
| Glass | 5mm AG tempered glass |
| Color | Black panel Black frame（optional) |
| Border Size | 9.5mm |
| Product body size | 964.8*552.8*57.2 |
| Product weight | 14.3kg |
| Package Size | 113*20*71 cm |
| Full package weight | 20.8KG |
| Uniform temperature heat dissipation | Original backlight and casing integrated heat dissipation |
| Operating system | Stand-alone / Android / Windows |
| Video support formats | Support RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV |
| Audio support formats | MPEG-1 Layers I、II、III2.0, MPEG-4 AAC-LC 5.1/HE-AAC5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 |
| Image support formats | BMP、JPEG、PNG、GIF |
| Other support formats | PDF, PPT, SWF, text, real-time data stream |
| Operating temperature | -10°C-50°C |
| Storage temperature | -20°C-60°C |
| Operating humidity | 5% ~90% |
| Storage humidity | 5% ~90% |
| Input voltage | 100V~240V AC |
| Maximum power | ≤130W |

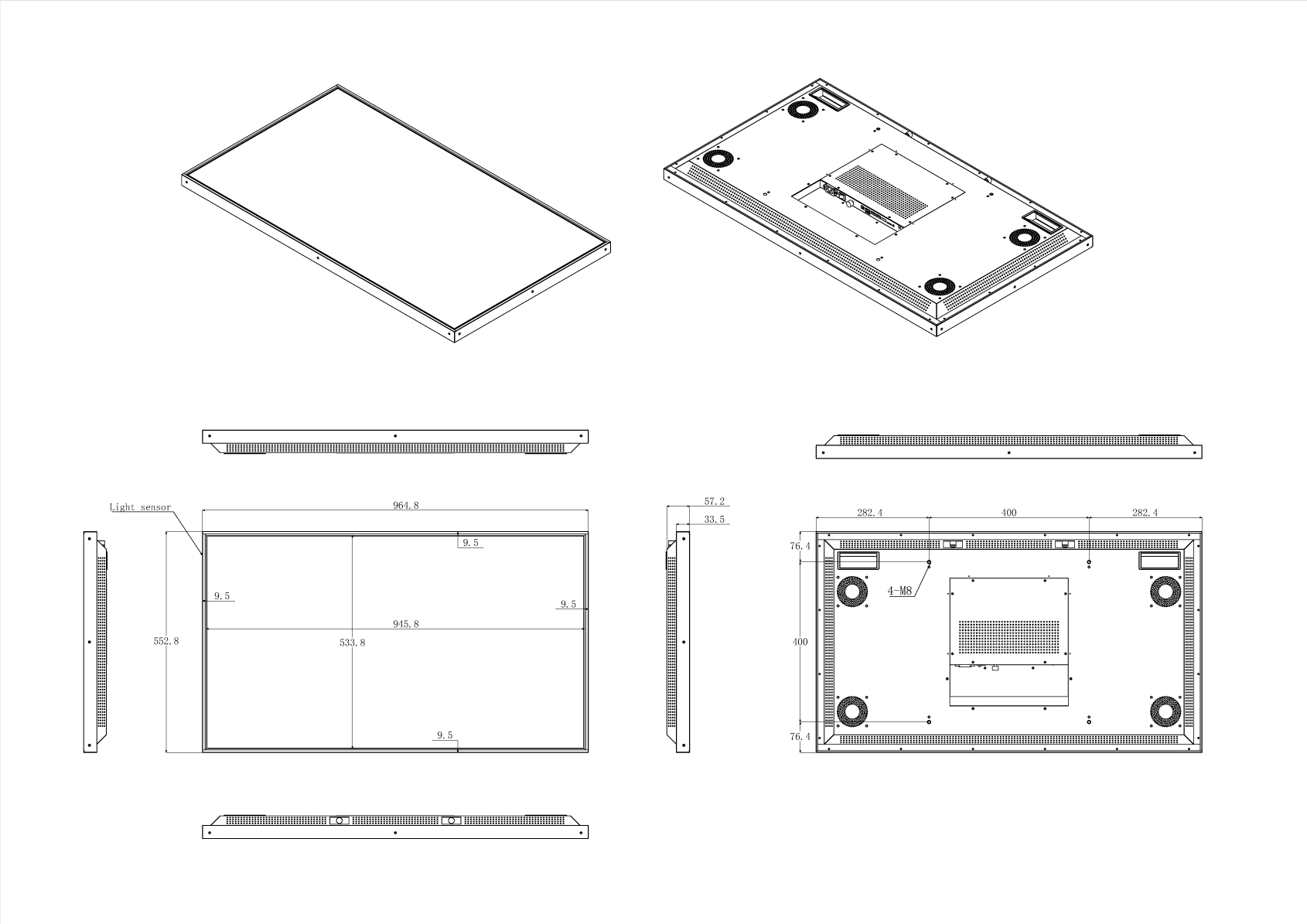

4. 43 Inch High Brightness Display Dimension Drawing
5. Accessories(Images below are for reference only; actual product may vary)
| Bracket | *1 |
| Screw | *1bag |
| Remote Controller | *1 |

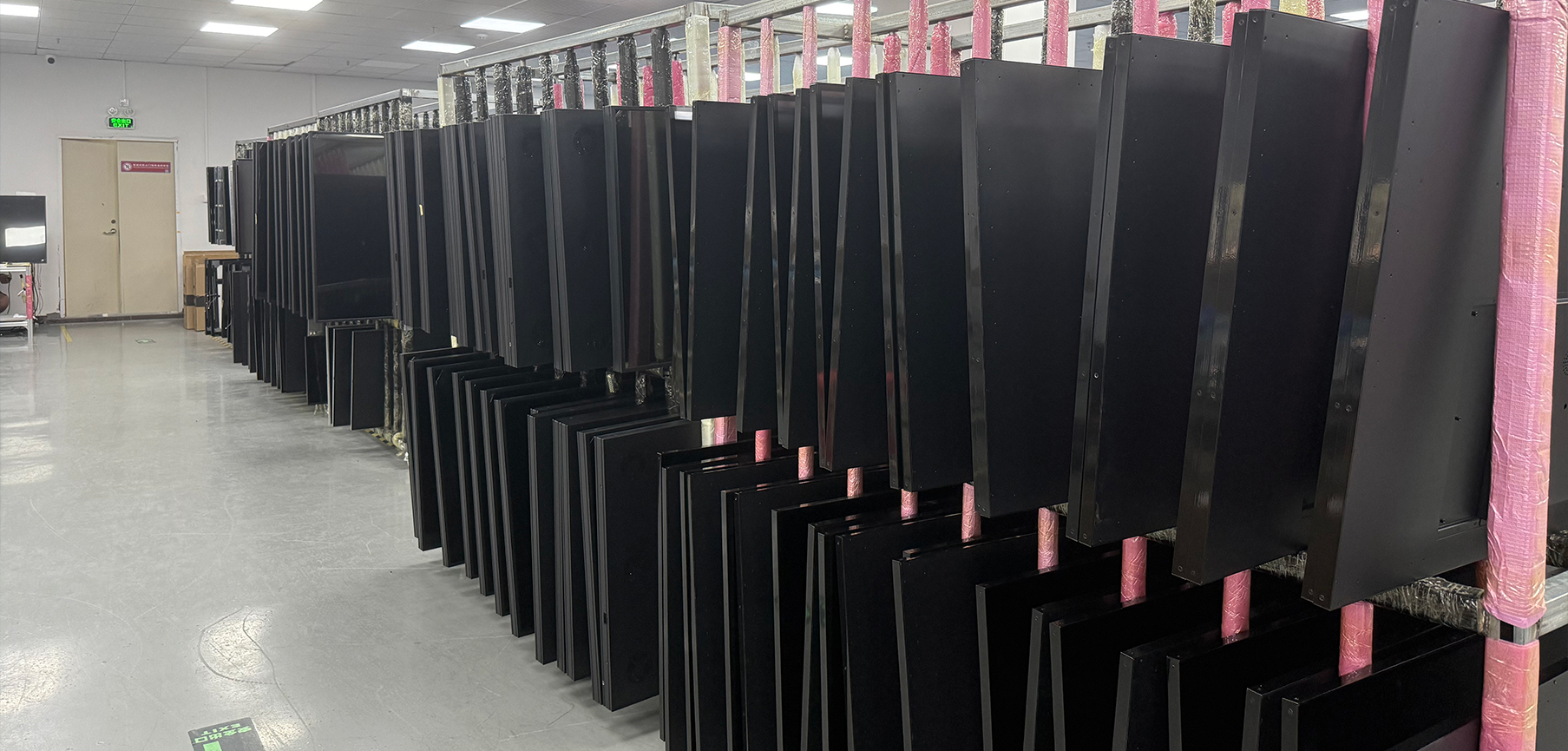

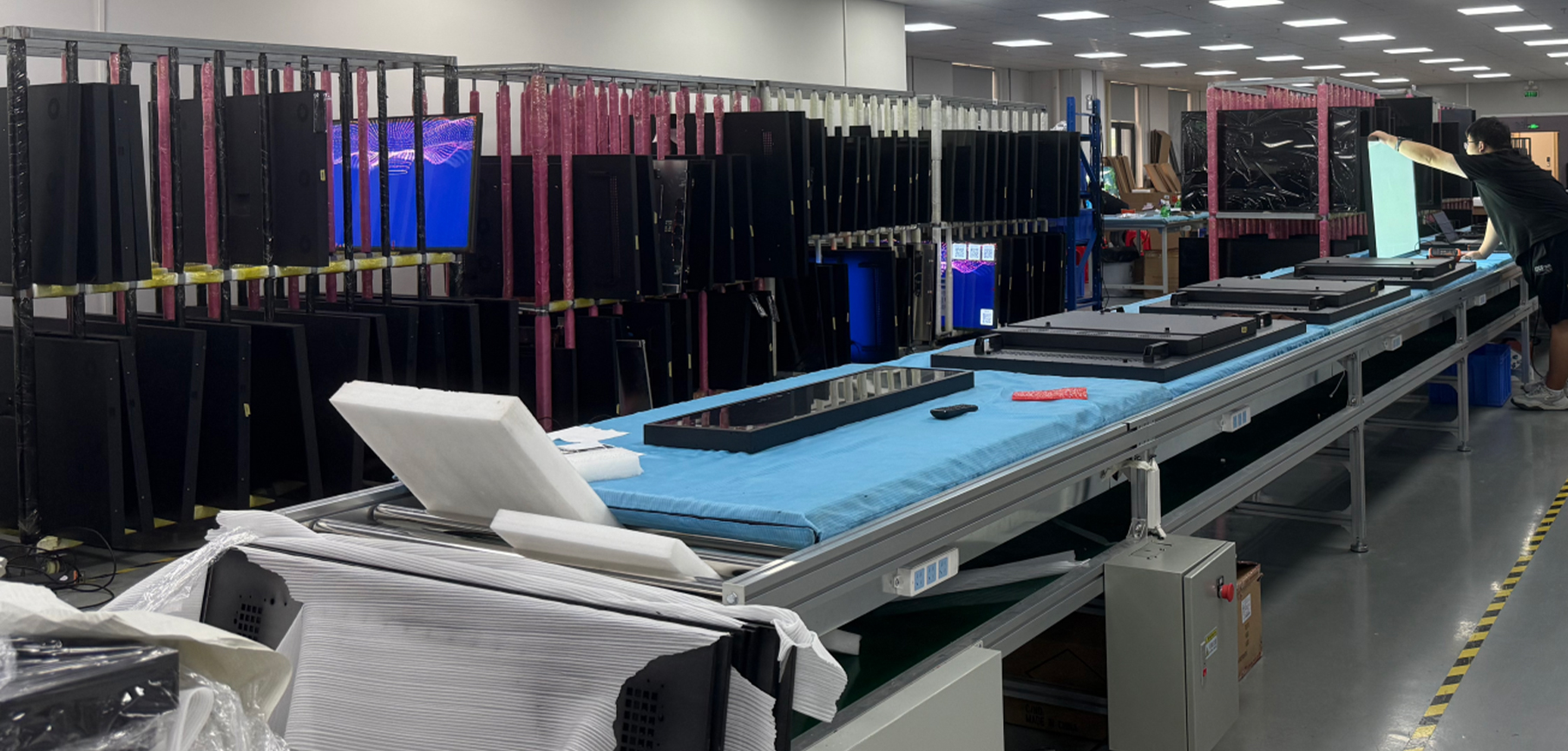

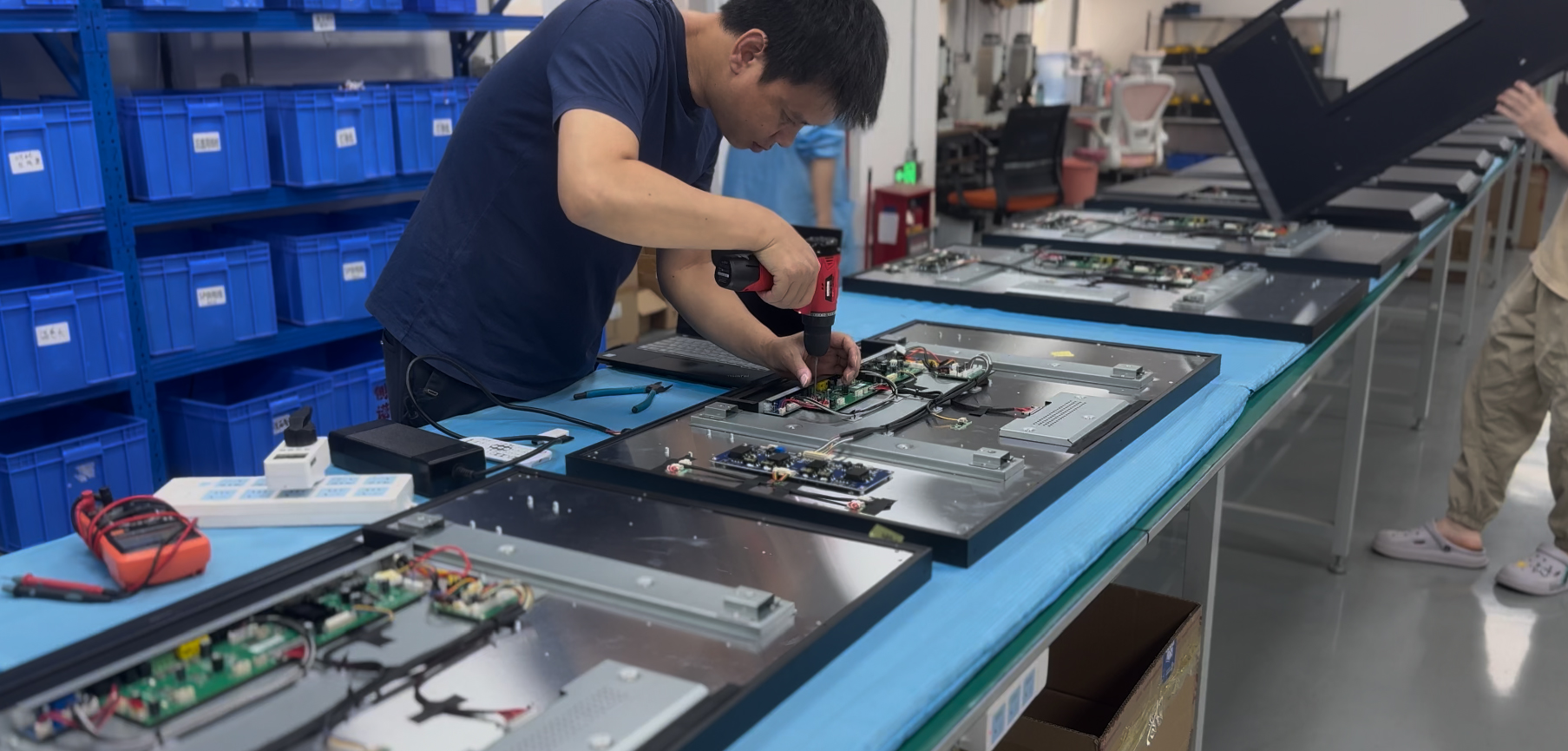

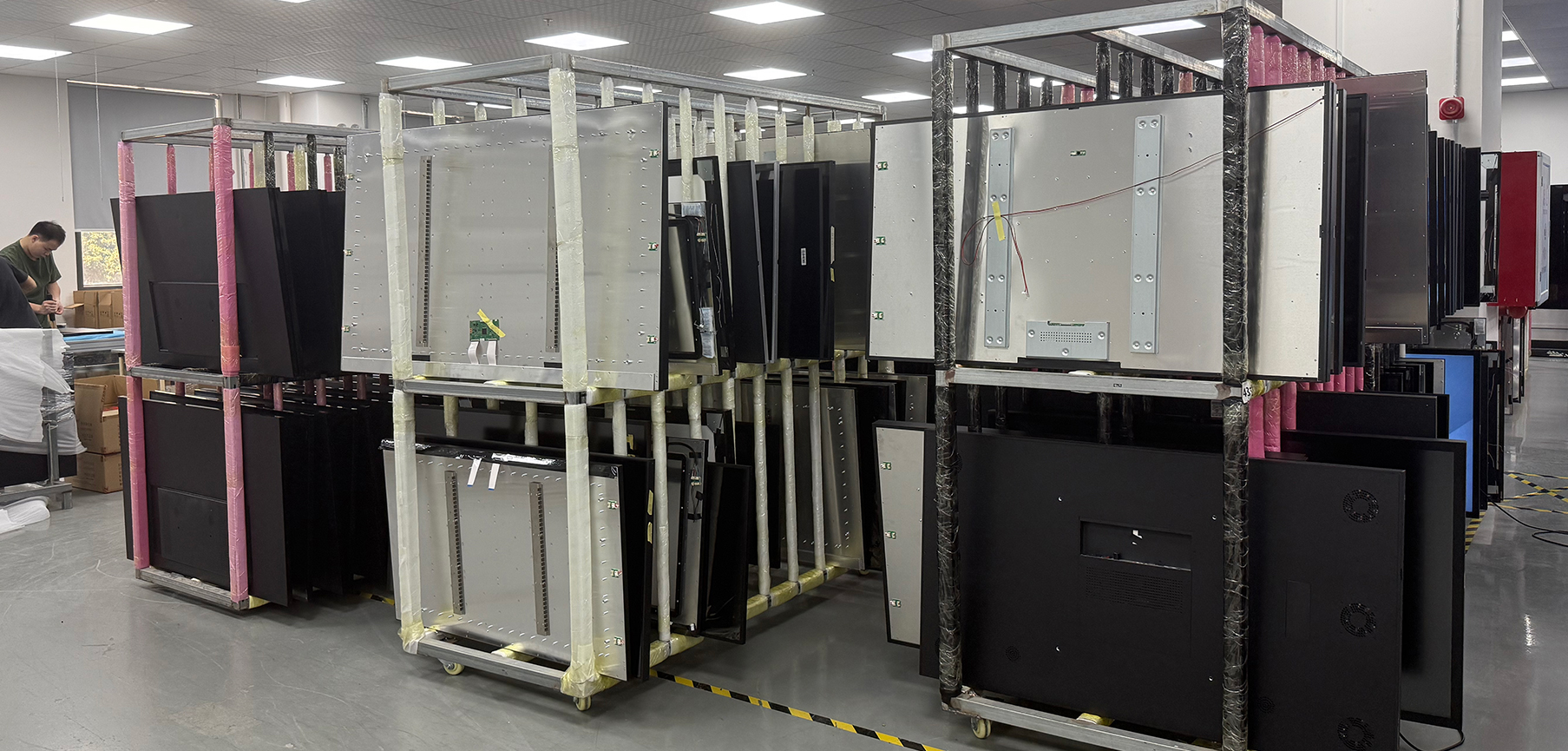

6. GoXmart High Brightness Display Production Line
GoXmart operates high-brightness LCD display production line for commercial-grade applications.Our advanced workshop integrates precision backlight assembly, optical bonding, and fully automated Optical Inspection (AOI) processes, to deliver high-performance, sunlight-readable display panels.
We specialize in high-brightness displays with typical brightness levels ranging from 1000 nits up to 4000 nits and beyond. These displays feature outstanding visibility under direct sunlight, wide viewing angles, and stable performance across wide temperature ranges. Every single product undergoes 100% functional testing, color calibration, and long-term aging testing, to ensure long-lasting reliability and consistent brightness output.
This professional production line supports large-scale customization and scalable monthly output. We provide high-quality high-brightness display solutions for global clients in retail, outdoor advertising, transportation, industrial control, digital signage and other industries worldwide.
Comprehensive after-sales support is available, featuring24/7 online technical assistance for free in the long term and a one-year warranty. We are committed to providing timely troubleshooting, professional maintenance guidance, and reliable technical support at no extra cost for the long run, ensuring stable and uninterrupted operation of your equipment and a seamless user experience.
GoXmart strictly adheres to international quality and safety standards, with all our display products fully certified for global market access. Our core certifications include CE, FCC, RoHS, CCC, ISO 9001 and more, covering safety, electromagnetic compatibility, environmental protection and performance reliability.
Each product undergoes rigorous laboratory testing and quality verification to ensure compliance with regional regulations worldwide, delivering secure, stable and legally qualified display solutions for global partners.
